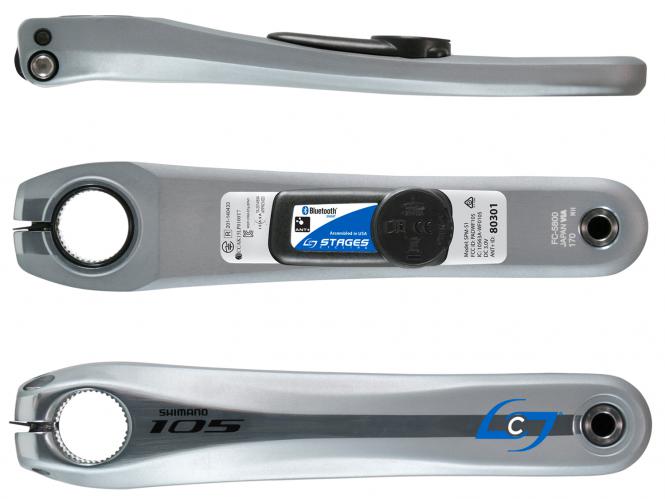

The Stages Power 105 5800 is the power meter for all riders that are using a Shimano 105 crankset. The Stages Power is pre-assembled on a 105 5800 left crankarm. It replaces the existing left crankarm which makes installation pretty simple. Due to the left crankarm interface there is no interference with the drivetrain components.
Riders only need to select color and length as the Stages Power meter 105 fits all styles of 105 cranksets, including compact and standard. Via ANT + and Bluetooth Smart technologies the Stages Power is compatible with all ANT + cycling computers as well as the latest smartphone models.
The new Stages Power meter is slimmer, and up to 28-percent lower profile than our original meter. It's sleeker by way of a 17-percent reduction in frontal area, and we've also made it stronger. The new housing design increases the strength of the battery door and housing connection by 200-percent over the previous design.
|Power meter housing:||New low profile with new door interface|
|Weight:||Only adds 20gr to base crank arm|
|Battery life:||200+ hours (coin cell: CR2032)|
|Power range (Watts):||0 – 2500|
|Cadence range (rpm):||20 – 220|
|Water resistance rating:||IPX7|
|Frame compatibility:||Most frames, see fit guide in our Support section|
|Crank Compatibility:||All Shimano Hollowtech II road cranks|
|Device compatibility:||ANT +, Bluetooth Smart Ready|
|Software compatibility:||Training Peaks, Strava, Garmin Training Center and others|
|Length:||165mm, 170mm; 172.5mm, 175mm|
- Tool free battery replacement
- Active temperature compensation
- Accelerometer based cadence measurement
- Wireless firmware upgrades
